Thermal Imaging or Infrared is a non-invasive method of seeing what might be going on behind your walls. The thermal imaging camera picks up very small differences in surface temperature, between -40C to 330C. During an inspection, the thermal camera is a valuable & time-saving tool that allows you to quickly scan a room for anomalies. Helping to pinpoint areas in an attic before ever entering the attic space It has assisted in the discovery of countless, water leaks and insulation issues. Providing dramatic and vivid images of air gaps around window and doors has helped many home buyers understand the home they are purchasing. Thermal imaging cameras are not X-Ray vision, cannot see through clothes and do not release radiation.

Side by side photo and thermal image of Missing Insulation discovered

Missing Insulation on the vertical wall of this vaulted ceiling

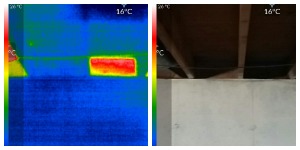

Side by side infrared and Photo basement

Rim Joists in Basement need insulating from the Summer Heat

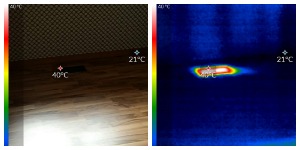

Side by side infrared and Photo taken during Heating inspection

Forced Air Register blowing nice and Hot!

Thermal Images are useful in the detection of…

  • Water infiltration; Plumbing leaks, Roof and penetrations (roof leaks located with recent rainfall within 24~48 hours)
  • Cold air infiltration around windows, doors, and floors
  • Excessive moisture in building materials
  • Stud / Joist / Beam / Rafter placement and structure
  • Insulation gaps, insufficient and unevenness
  • Hotspots in; electrical drops, panels, breakers, switches and wire connections

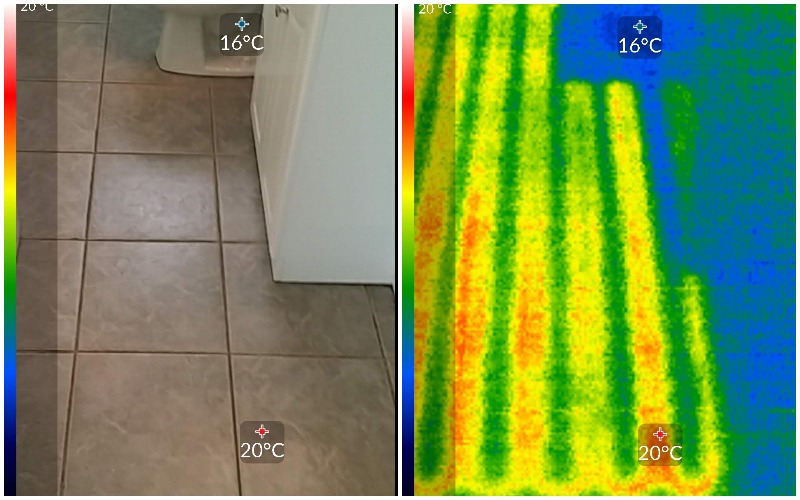

Thermal image of in floor Heating

In-Floor Heating on a Bathroom floor

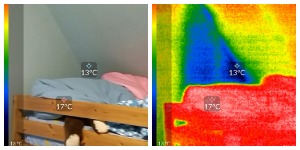

Side by side photo and thermal image

Missing Insulating next to Child’s bed

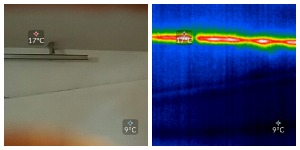

Side by side photo and thermal image

Non Insulated Hot water pipe running through Ceiling of Unheated Garage

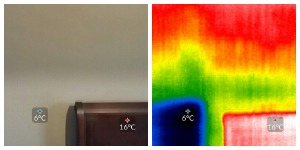

Side by side photo and thermal image

Fallen Insulation behind Knee wall

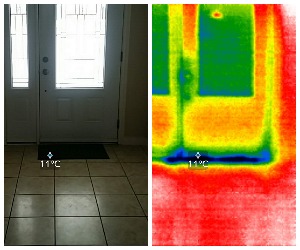

side by side photo and thermal image of air leak at door

Cold air leak around door

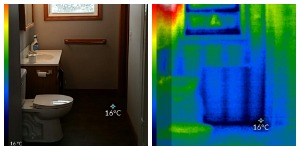

Side by side photo and thermal image bathroom

Missing or Insufficient Insulation on Bathroom Wall

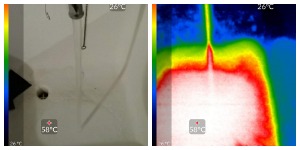

side by side photo and thermal image of hot water running

Testing the Hot Water Temperature is quick and easy with Infrared

side by side of photo and thermal of working Rad

Above Working Hot Water Radiator and Bellow Non Functioning Radiator

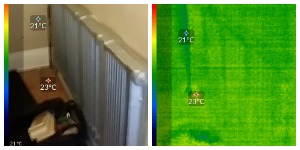

side by side photo and thermal image of non working Rad

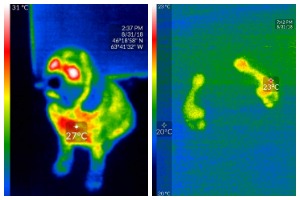

Thermal images of a dog and foot prints

Fun with Thermal Imaging! Grady the Space Dog and warm footprints on a cool floor

As with any type of inspection, it can’t predict future conditions.  However, a roof that is experiencing moisture intrusion which has been detected through thermal imaging will very likely lead to serious structural issues, if left unaddressed.
